The catalogue · 365,000+ metres in stock
Everything a lift hangs on, on the shelf.
Gustav Wolf and Kiswire ropes by the kilometre, OEM-compatible belts, terminations by the thousand — cut, made up and certified in our Erith works, delivered nationwide.
- Est. 1986 · The UK’s Original Independent Supply & Fit
- Survey · Supply · Fit · Guarantee
- Gustav Wolf & Kiswire · Lift Rope Partners
- 365,000+ Metres of Rope in Stock
- EN 12385-5 · ISO 4344 · EN 13411 Terminations
- Certificates With Every Rope
- London · Belfast · Dublin — Nationwide Fitting
- A WH Scott Group Company
Family 01 · 3 lines
Suspension Ropes
The 8×19 traction workhorses — stocked by the tens of kilometres in fibre, mixed and steel core, from both of our rope makers.
Selection data
- Constructions
- 8×19 Seale (S) · 8×19 Warrington (W) · 8×36 Warrington-Seale (WS) · Kiswire 8×S(19), 8×Fi(25), 6×W(19), 6×Fi(25)
- Cores
- Natural fibre (NFC) · mixed steel + fibre · steel (IWRC)
- Stocked diameters
- 6 · 6.5 · 8 · 9 · 9.5 · 10 · 11 · 12 · 13 · 16 mm
- Grades
- Dual-tensile 1370/1770 N/mm² (fibre core) · 1570 N/mm² (steel core)
- Finish · lay
- Bright (U) · right ordinary lay (sZ / RHOL)
- Rope makers
- Gustav Wolf (Germany) · Kiswire (South Korea)
- Standards
- ISO 4344:2022 · EN 12385-5 · terminations to EN 13411
- Supply
- Cut to measured length · terminations fitted to order · certificate per rope
Minimum breaking force is certificate data, issued per delivery against the actual rope, diameter and grade supplied — we do not publish generic figures against a construction.
Gustav Wolf

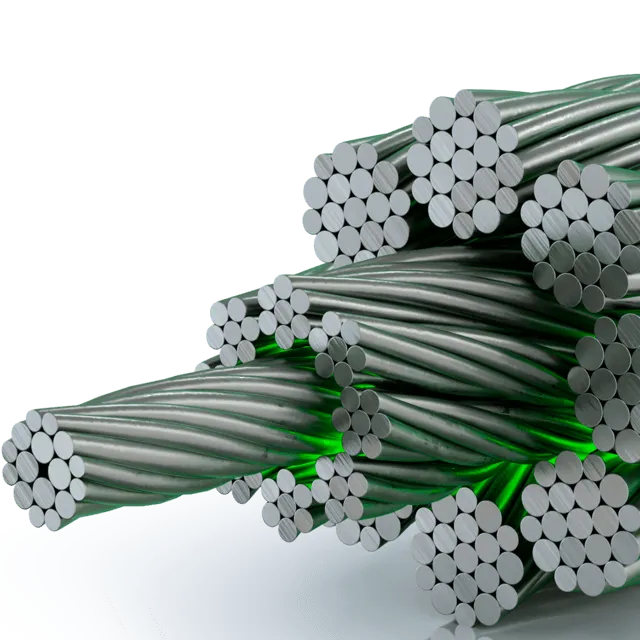

PAWO 819 — 8×19 Suspension Rope
The traction lift workhorse, in every core
Specifications
Gustav Wolf

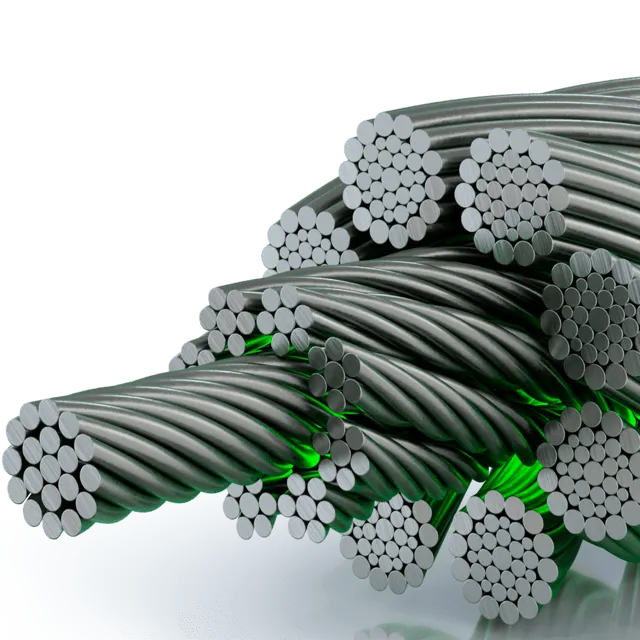

PAWO 836 WS — 8×36 Warrington-Seale
More wires, more flexibility — for the bends that punish
Specifications
Kiswire

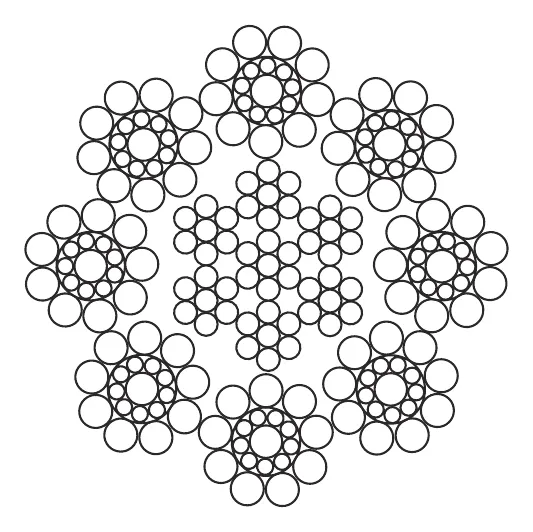

Kiswire Hoist Rope — 8×19S & 8×25Fi Family
A second engineered source for traction suspension
SpecificationsFamily 02 · 3 lines
High-Performance & Small Diameter Ropes
Steel-core and small-diameter constructions for high-rise, high-duty and machine-room-less installations.
Selection data
- Constructions
- 8×19 Warrington (W) over IWRC · F10 high-performance 8-strand
- Core
- IWRC — independent wire rope core
- Grade
- 1570 N/mm²
- Stocked
- 8 mm F7S (7,800+ m) · F10 (24,000+ m)
- Duty
- High-rise, high-duty and machine-room-less packages
- Standards
- ISO 4344 · EN 12385-5
Kiswire

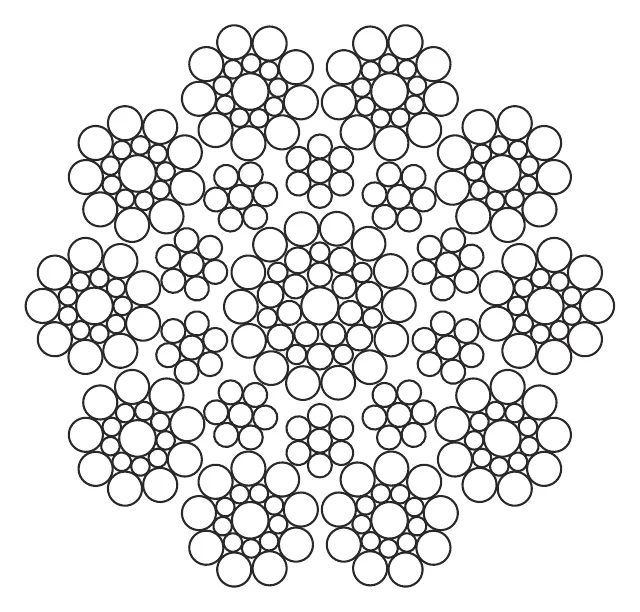

Kiswire Hyele 10 — Ten-Strand High-Rise Traction Rope
Ten strands over a parallel wire rope core, for high travel
Specifications
Gustav Wolf

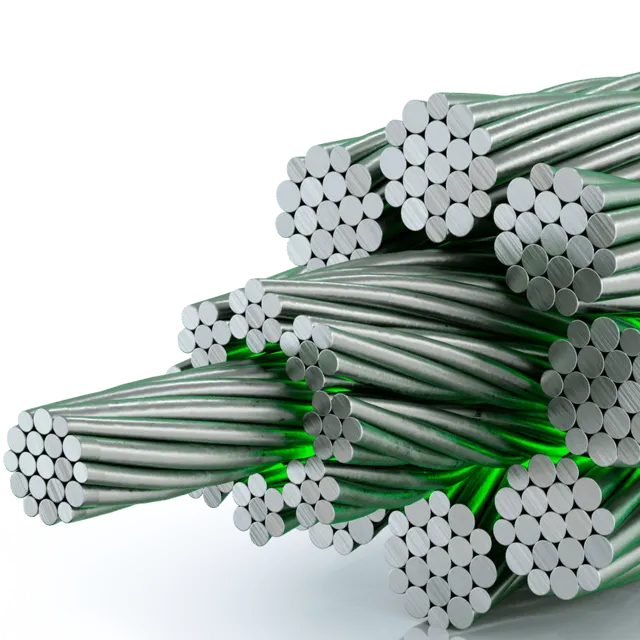

PAWO F7S — High-Performance Steel-Core
8×19 Warrington on an IWRC heart — stability under duty
Specifications
Gustav Wolf

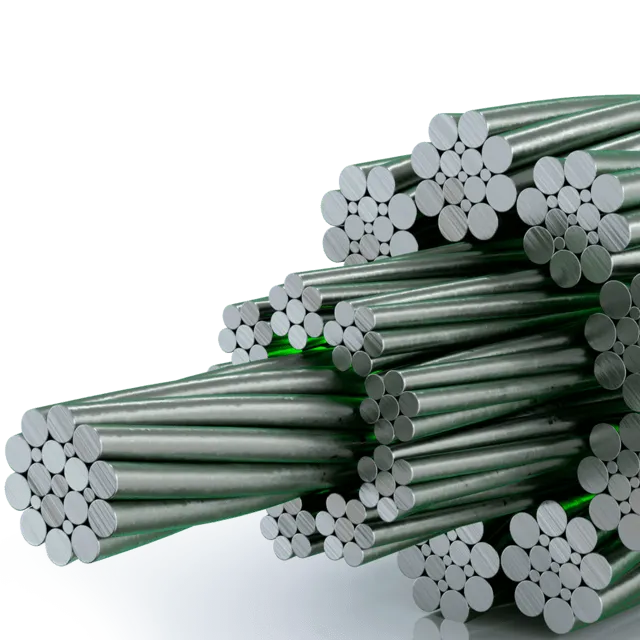

PAWO F10 — Premium High-Rise Rope
The F-series flagship we keep 25 kilometres of
SpecificationsFamily 03 · 3 lines
Specialty Ropes & Cables
Governor, conductor, coated, compensating and crane ropes — the rest of the shaft, covered.
Selection data
- Governor
- 6×19 family incl. F6/19 W-FE DT — 6 and 6.5 mm stocked
- Conductor
- Copper-core conductor rope (wider family to order)
- Coated
- OEM plastic-coated rope — Orona pattern stocked
- Compensating
- Sheathed compensating chain and cable, with hangers, guides and fixings
- Standards
- Per designation · certificates supplied
Gustav Wolf
Governor & Small Diameter Ropes — 6×19 Family
Small diameters with a safety-critical job
Specifications
Gustav Wolf · OEM lines
Conductor & Coated Ropes
Copper-cored, plastic-coated and otherwise particular
Specifications
Trade lines

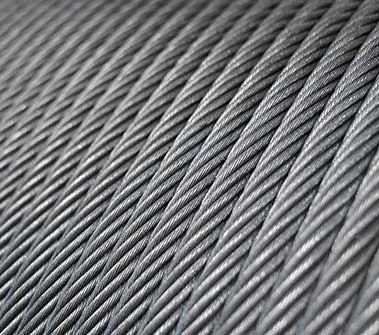

Compensating Chains & Cables
Balance, hung quietly beneath the car
SpecificationsFamily 04 · 1 lines
Suspension Belts
OEM-compatible flat and chevron belts with the clamps and anchorages to fit them.
Selection data
- Flat belts
- 25 mm and 30 mm lines (AAA717 AJ1/AJ2 pattern)
- Chevron belts
- 60 mm chevron (R1) and W1 pattern lines
- PV pattern
- Schindler PV30 and PV50 stocked · PV40 to order
- Accessories
- Belt anchorages · monitoring clamps · shortening clamps
- Duty
- Belt-suspended MRL and machine packages
Family 05 · 3 lines
Terminations & Suspension Hardware
Sockets, springs, buffers and fittings to EN 13411 duty — thousands of pieces on the shelf.
Selection data
- Sockets
- Symmetric and asymmetric rope sockets — 2,000+ held
- Wedge
- DIN-grip wedge terminations — 17,500+ held
- Works-made
- Ferrule-secured eyebolt and thimble-eye terminations
- Springs · buffers
- Pressure springs with cup washers · FP1, FB2 and FP3 rubber buffers
- Standards
- EN 13411 series duty · certificates with assemblies
Works & trade lines

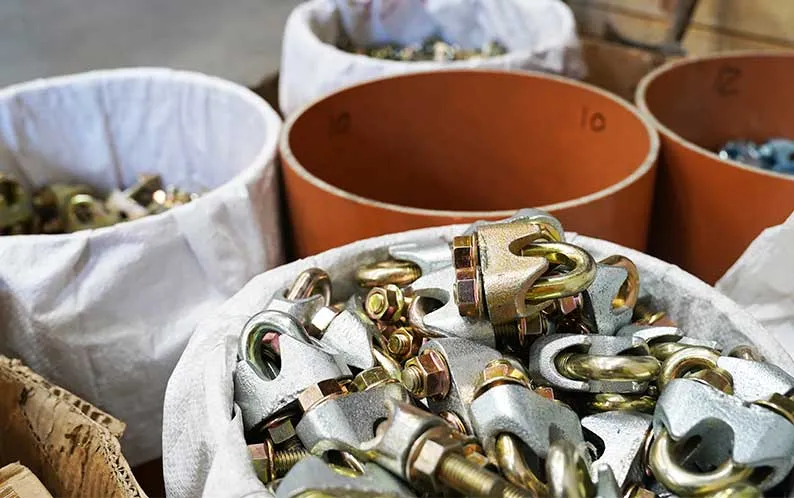

Rope Sockets & Terminations
Where one hundred percent of the load changes hands
Specifications
Trade lines

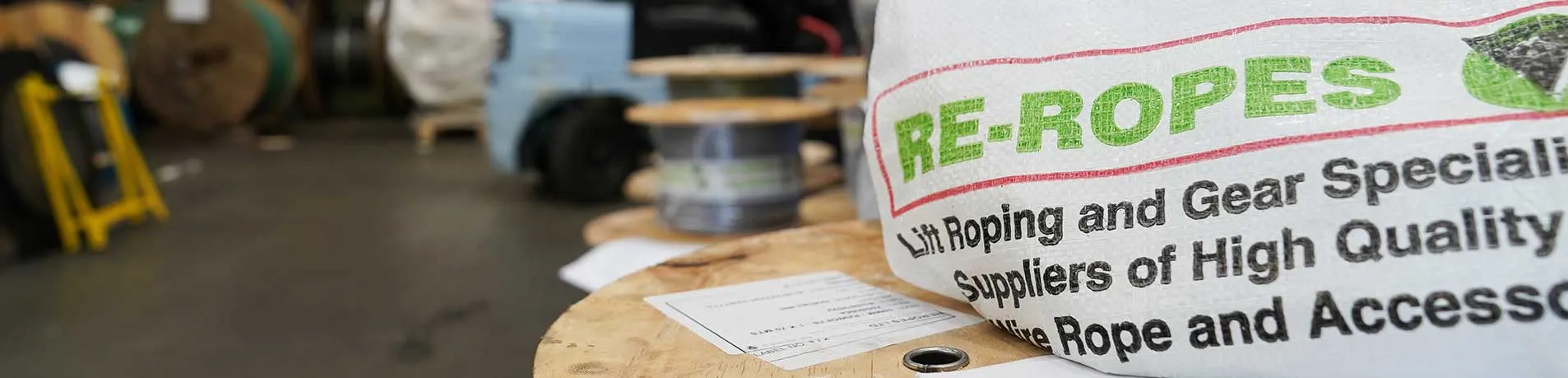

Pressure Springs, Buffers & Suspension Parts
The compliance that lets five ropes share one load
Specifications
Works & trade lines
Traction Sheaves & Diverters
The iron half of traction, supplied and machined
SpecificationsLift Industry Specialists
Can't see the exact designation?
Send the rope certificate, a sample, or a photo of the data plate — identification and a certified equivalent are what the works does all day.
